BL1215-12xxM series

double-row SMD horizontal angular pin headers, pitch 2,54x2,54 mm

BL1215-12xxM series, double-row SMD horizontal angular pin headers, pitch 2,54x2,54 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,54x2,54 mm

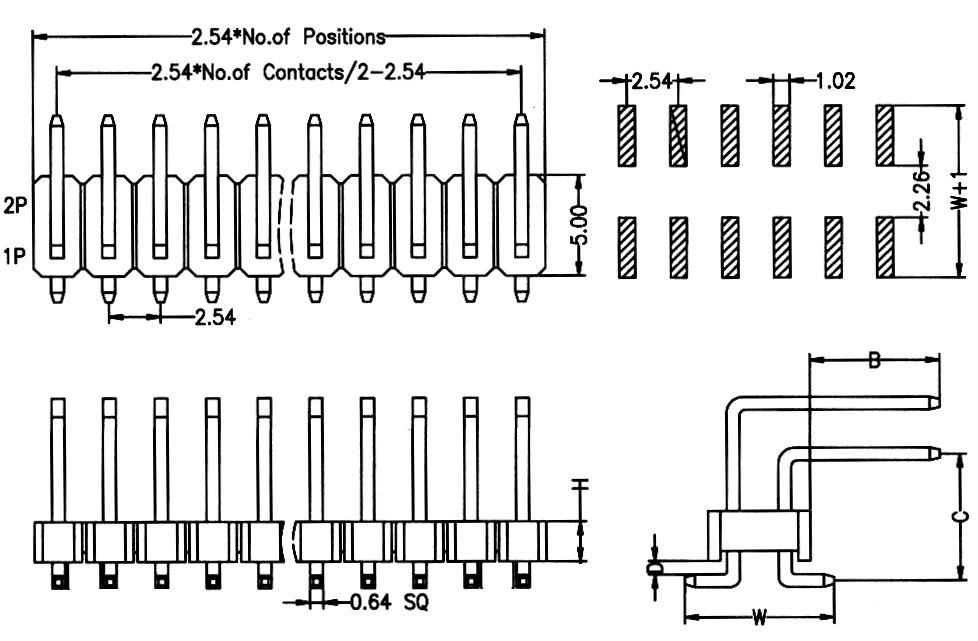

Drawing

BL1215	-	1	2	XX	M
1		2	3	4	5

1) series:
     BL1215: H=1,5mm
2) insulator:
     1: one
3) Number of rows:
     2: two
4) number of pins in a row:
     01...40
5) Type:
     M: vertical for surface mounting (SMD)

Double-row SMD horizontal angular pin headers of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+123°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
98220	BL1215-1201M	2x1
98221	BL1215-1202M	2x2
98222	BL1215-1203M	2x3
98223	BL1215-1204M	2x4
98224	BL1215-1205M	2x5
98225	BL1215-1206M	2x6
98226	BL1215-1207M	2x7
98227	BL1215-1208M	2x8
98228	BL1215-1209M	2x9
98229	BL1215-1210M	2x10
98230	BL1215-1211M	2x11
98231	BL1215-1212M	2x12
98232	BL1215-1213M	2x13
98233	BL1215-1214M	2x14
98234	BL1215-1215M	2x15
98235	BL1215-1216M	2x16
98236	BL1215-1217M	2x17
98237	BL1215-1218M	2x18
98238	BL1215-1219M	2x19
98239	BL1215-1220M	2x20
98240	BL1215-1221M	2x21
98241	BL1215-1222M	2x22
98242	BL1215-1223M	2x23
98243	BL1215-1224M	2x24
98244	BL1215-1225M	2x25
98245	BL1215-1226M	2x26
98246	BL1215-1227M	2x27
98247	BL1215-1228M	2x28
98248	BL1215-1229M	2x29
98249	BL1215-1230M	2x30
98250	BL1215-1231M	2x31
98251	BL1215-1232M	2x32
98252	BL1215-1233M	2x33
98253	BL1215-1234M	2x34
98254	BL1215-1235M	2x35
98255	BL1215-1236M	2x36
98256	BL1215-1237M	2x37
98257	BL1215-1238M	2x38
98258	BL1215-1239M	2x39
98259	BL1215-1240M	2x40
