| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
BL1320-24xxR2-2.0 series |
plugs pin four-row angular with a double insulator angular, pitch 2,0x2,0 mm
|

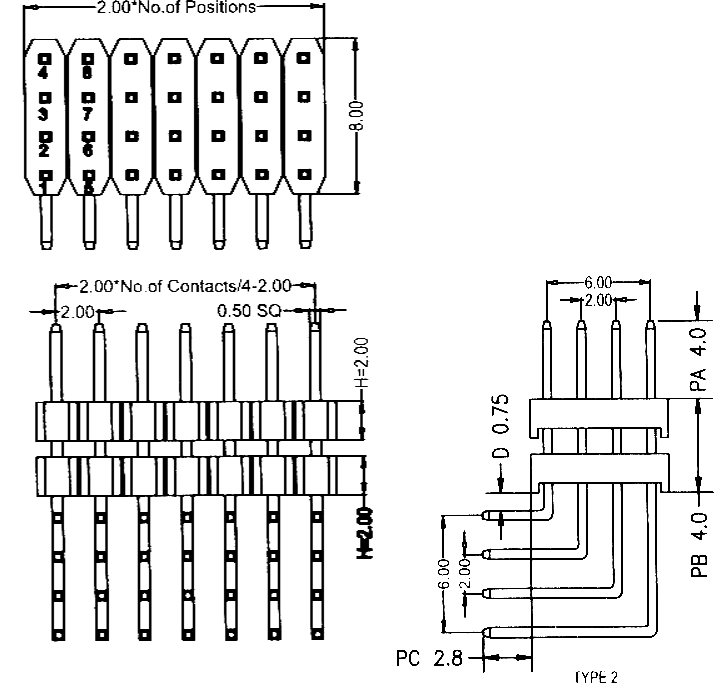

Drawing
|
| BL1320 |
- |
2 |
4 |
XXX |
R |
G |
- |
404028750 |
| 1 |
|
2 |
3 |
4 |
5 |
6 |
|
7 |
|
|
1) Series:
BL1320
2) Number of insulators:
2: two
3) Number of rows:
4: four
4) number of pins (4...160):
XXX
5) Type:
S: straight
R: angle
M: vertical for surface mounting (SMD)
Z: horizontal for surface mounting (SMD)
6) Contact coverage:
G: gold plating
T: tin plating
7) Dimensions PA, PB, PC, D in tenths of mm:
404028750: (standard) PA=4,0 mm, PB=4.0 mm, PC=2,8 mm, D=0,75 mm
|
|
Plugs pin four-row angular with a double insulator angular of this series are made in the form of a comb 4x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 4, 8, 12... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 97300 |
BL1320-24004R2-2.0 |
4 |
| 97301 |
BL1320-24008R2-2.0 |
8 |
| 97302 |
BL1320-24012R2-2.0 |
12 |
| 97303 |
BL1320-24016R2-2.0 |
16 |
| 97304 |
BL1320-24020R2-2.0 |
20 |
| 97305 |
BL1320-24024R2-2.0 |
24 |
| 97306 |
BL1320-24028R2-2.0 |
28 |
| 97307 |
BL1320-24032R2-2.0 |
32 |
| 97308 |
BL1320-24036R2-2.0 |
36 |
| 97309 |
BL1320-24040R2-2.0 |
40 |
| 97310 |
BL1320-24044R2-2.0 |
44 |
| 97311 |
BL1320-24048R2-2.0 |
48 |
| 97312 |
BL1320-24052R2-2.0 |
52 |
| 97313 |
BL1320-24056R2-2.0 |
56 |
| 97314 |
BL1320-24060R2-2.0 |
60 |
| 97315 |
BL1320-24064R2-2.0 |
64 |
| 97316 |
BL1320-24068R2-2.0 |
68 |
| 97317 |
BL1320-24072R2-2.0 |
72 |
| 97318 |
BL1320-24076R2-2.0 |
76 |
| 97319 |
BL1320-24080R2-2.0 |
80 |
|
|
| 97320 |
BL1320-24084R2-2.0 |
84 |
| 97321 |
BL1320-24088R2-2.0 |
88 |
| 97322 |
BL1320-24092R2-2.0 |
92 |
| 97323 |
BL1320-24096R2-2.0 |
96 |
| 97324 |
BL1320-24100R2-2.0 |
100 |
| 97325 |
BL1320-24104R2-2.0 |
104 |
| 97326 |
BL1320-24108R2-2.0 |
108 |
| 97327 |
BL1320-24112R2-2.0 |
112 |
| 97328 |
BL1320-24116R2-2.0 |
116 |
| 97329 |
BL1320-24120R2-2.0 |
120 |
| 97330 |
BL1320-24124R2-2.0 |
124 |
| 97331 |
BL1320-24128R2-2.0 |
128 |
| 97332 |
BL1320-24132R2-2.0 |
132 |
| 97333 |
BL1320-24136R2-2.0 |
136 |
| 97334 |
BL1320-24140R2-2.0 |
140 |
| 97335 |
BL1320-24144R2-2.0 |
144 |
| 97336 |
BL1320-24148R2-2.0 |
148 |
| 97337 |
BL1320-24152R2-2.0 |
152 |
| 97338 |
BL1320-24156R2-2.0 |
156 |
| 97339 |
BL1320-24160R2-2.0 |
160 |
|
PCB layout
|
|
|
