| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
BL1320-13xxR-2.0 series |
plugs, three-row, angular, pitch 2,0x2,0 mm
|

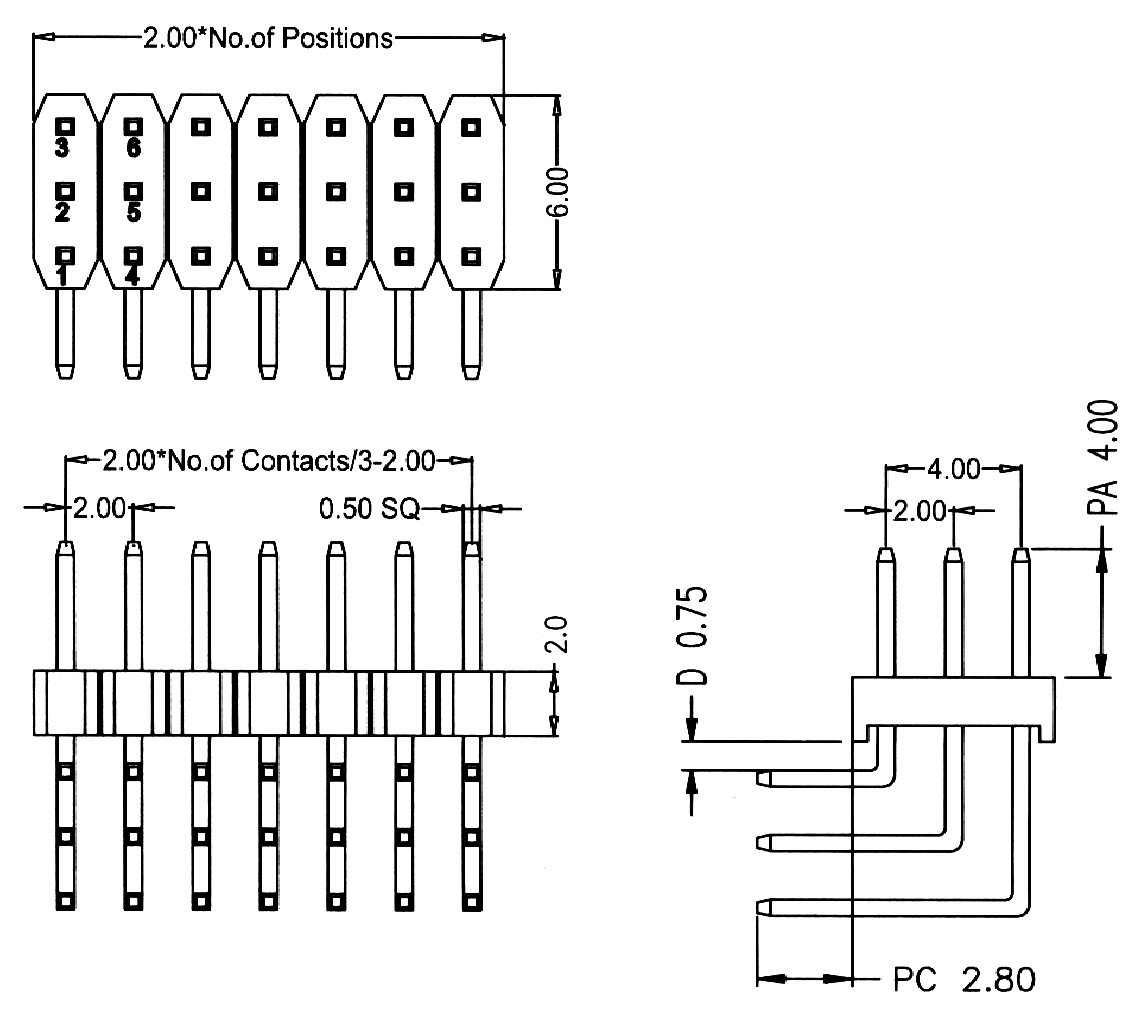

Drawing
|
| BL1320 |
- |
1 |
3 |
XXX |
R |
G |
- |
4028075 |
| 1 |
|
2 |
3 |
4 |
5 |
6 |
|
7 |
|
|
1) Series:
BL1320
2) Insulator:
1: one
3) Number of rows:
3: three
4) number of pins (3...120):
XXX
5) Type:
S: straight
R: angle
M: vertical for surface mounting (SMD)
Z: horizontal for surface mounting (SMD)
6) Contact coverage:
G: gold plating
T: tin plating
7) Dimensions PA, PC, D in tenths of mm:
4028075: (standard) PA=4,0 mm, PC=2,8 mm, D=0,75 mm
|
|
Plugs, three-row, angular of this series are made in the form of a comb 3x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 3, 6, 9... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

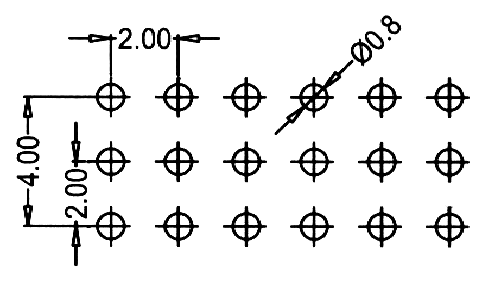

PCB layout
 |
| 96900 |
BL1320-13003R-2.0 |
3 |
| 96901 |
BL1320-13006R-2.0 |
6 |
| 96902 |
BL1320-13009R-2.0 |
9 |
| 96903 |
BL1320-13012R-2.0 |
12 |
| 96904 |
BL1320-13015R-2.0 |
15 |
| 96905 |
BL1320-13018R-2.0 |
18 |
| 96906 |
BL1320-13021R-2.0 |
21 |
| 96907 |
BL1320-13024R-2.0 |
24 |
| 96908 |
BL1320-13027R-2.0 |
27 |
| 96909 |
BL1320-13030R-2.0 |
30 |
| 96910 |
BL1320-13033R-2.0 |
33 |
| 96911 |
BL1320-13036R-2.0 |
36 |
| 96912 |
BL1320-13039R-2.0 |
39 |
| 96913 |
BL1320-13042R-2.0 |
42 |
| 96914 |
BL1320-13045R-2.0 |
45 |
| 96915 |
BL1320-13048R-2.0 |
48 |
| 96916 |
BL1320-13051R-2.0 |
51 |
| 96917 |
BL1320-13054R-2.0 |
54 |
| 96918 |
BL1320-13057R-2.0 |
57 |
| 96919 |
BL1320-13060R-2.0 |
60 |
|
|
| 96920 |
BL1320-13063R-2.0 |
63 |
| 96921 |
BL1320-13066R-2.0 |
66 |
| 96922 |
BL1320-13069R-2.0 |
69 |
| 96923 |
BL1320-13072R-2.0 |
72 |
| 96924 |
BL1320-13075R-2.0 |
75 |
| 96925 |
BL1320-13078R-2.0 |
78 |
| 96926 |
BL1320-13081R-2.0 |
81 |
| 96927 |
BL1320-13084R-2.0 |
84 |
| 96928 |
BL1320-13087R-2.0 |
87 |
| 96929 |
BL1320-13090R-2.0 |
90 |
| 96930 |
BL1320-13093R-2.0 |
93 |
| 96931 |
BL1320-13096R-2.0 |
96 |
| 96932 |
BL1320-13099R-2.0 |
99 |
| 96933 |
BL1320-13102R-2.0 |
102 |
| 96934 |
BL1320-13105R-2.0 |
105 |
| 96935 |
BL1320-13108R-2.0 |
108 |
| 96936 |
BL1320-13111R-2.0 |
111 |
| 96937 |
BL1320-13114R-2.0 |
114 |
| 96938 |
BL1320-13117R-2.0 |
117 |
| 96939 |
BL1320-13120R-2.0 |
120 |
|
PCB layout
|
|
|
