BL1315-13xxR-1.5 series

plugs, three-row, angular, pitch 2,0x2,0 mm

BL1315-13xxR-1.5 series, plugs, three-row, angular, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

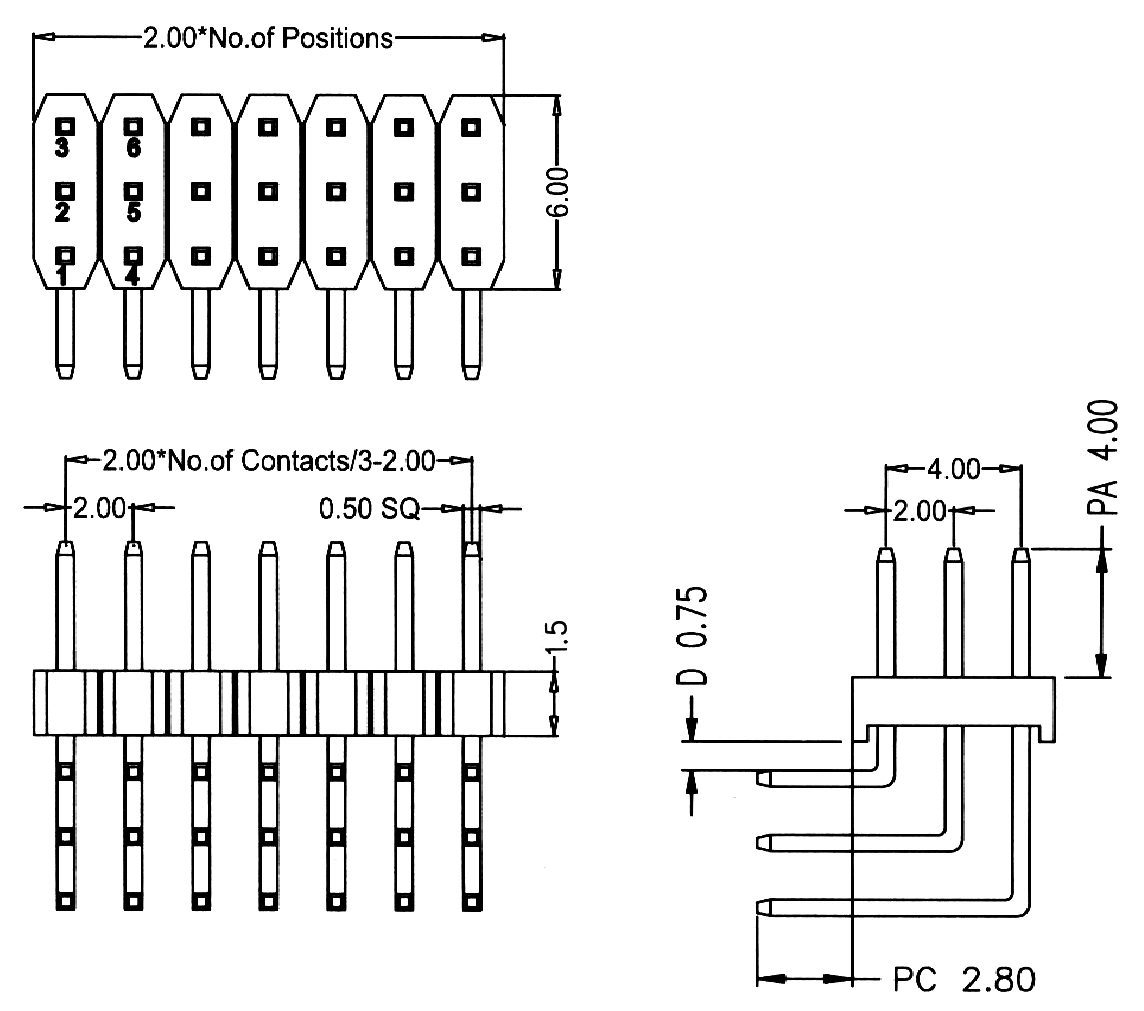

Drawing

BL1315	-	1	3	XXX	R	G	-	4028075
1		2	3	4	5	6		7

1) Series:
     BL1315
2) Insulator:
     1: one
3) Number of rows:
     3: three
4) number of pins (3…120):
     XXX
5) Type:
     S: straight
     R: angle
     M: vertical for surface mounting (SMD)
     Z: horizontal for surface mounting (SMD)
6) Contact coverage:
     G: gold plating
     T: tin plating
7) Dimensions PA, PC, D in tenths of mm:
     4028075: (standard) PA=4,0 mm, PC=2,8 mm, D=0,75 mm

Plugs, three-row, angular of this series are made in the form of a comb 3x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 3, 6, 9... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
96860	BL1315-1301R	3x1
96861	BL1315-1302R	3x2
96862	BL1315-1303R	3x3
96863	BL1315-1304R	3x4
96864	BL1315-1305R	3x5
96865	BL1315-1306R	3x6
96866	BL1315-1307R	3x7
96867	BL1315-1308R	3x8
96868	BL1315-1309R	3x9
96869	BL1315-1310R	3x10
96870	BL1315-1311R	3x11
96871	BL1315-1312R	3x12
96872	BL1315-1313R	3x13
96873	BL1315-1314R	3x14
96874	BL1315-1315R	3x15
96875	BL1315-1316R	3x16
96876	BL1315-1317R	3x17
96877	BL1315-1318R	3x18
96878	BL1315-1319R	3x19
96879	BL1315-1320R	3x20

ID	Part.No.	number of contacts
96880	BL1315-1321R	3x21
96881	BL1315-1322R	3x22
96882	BL1315-1323R	3x23
96883	BL1315-1324R	3x24
96884	BL1315-1325R	3x25
96885	BL1315-1326R	3x26
96886	BL1315-1327R	3x27
96887	BL1315-1328R	3x28
96888	BL1315-1329R	3x29
96889	BL1315-1330R	3x30
96890	BL1315-1331R	3x31
96891	BL1315-1332R	3x32
96892	BL1315-1333R	3x33
96893	BL1315-1334R	3x34
96894	BL1315-1335R	3x35
96895	BL1315-1336R	3x36
96896	BL1315-1337R	3x37
96897	BL1315-1338R	3x38
96898	BL1315-1339R	3x39
96899	BL1315-1340R	3x40
