| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
BL1320-22xxR2-2.0 series |
double-row pin plugs with double insulator corner, pitch 2,0x2,0 mm
|

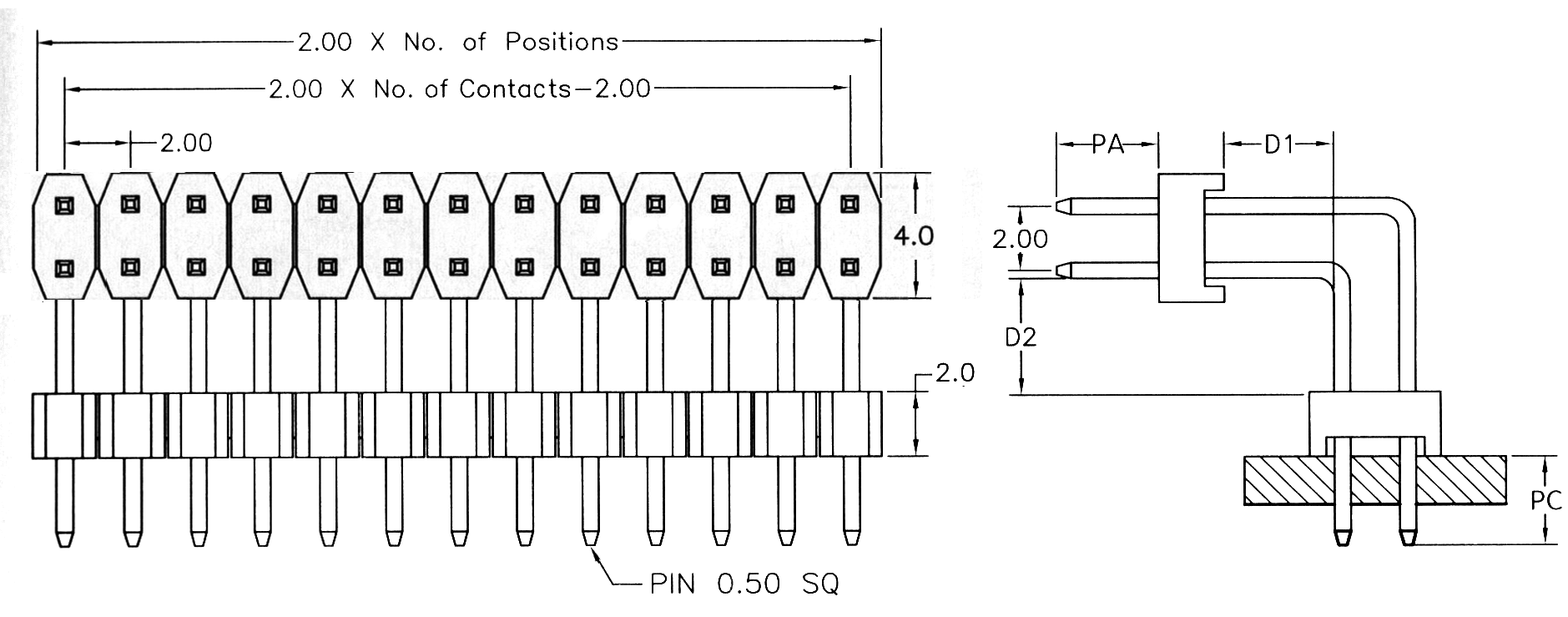

Drawing
|
| BL1320 |
- |
2 |
2 |
XX |
R |
G |
- |
28505040 |
| 1 |
|
2 |
3 |
4 |
5 |
6 |
|
7 |
|
|
1) Series:
BL1320
2) Number of insulators:
2: two
3) Number of rows:
2: two
4) number of pins (2...80):
XX
5) Type:
S: straight
R: angle
M: vertical for surface mounting (SMD)
Z: horizontal for surface mounting (SMD)
6) Contact coverage:
G: gold plating
T: tin plating
7) Dimensions PC, D, PB, PA in tenths of mm:
28505040: (standard) PC=2,8 mm, D1=5,0 mm, D2=5,0 mm, PA=4,0 mm
|
|
Double-row pin plugs with double insulator corner of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
