BL1315-22xxR2-1.5 series

double-row pin plugs with double insulator corner, pitch 2,0x2,0 mm

BL1315-22xxR2-1.5 series, double-row pin plugs with double insulator corner, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

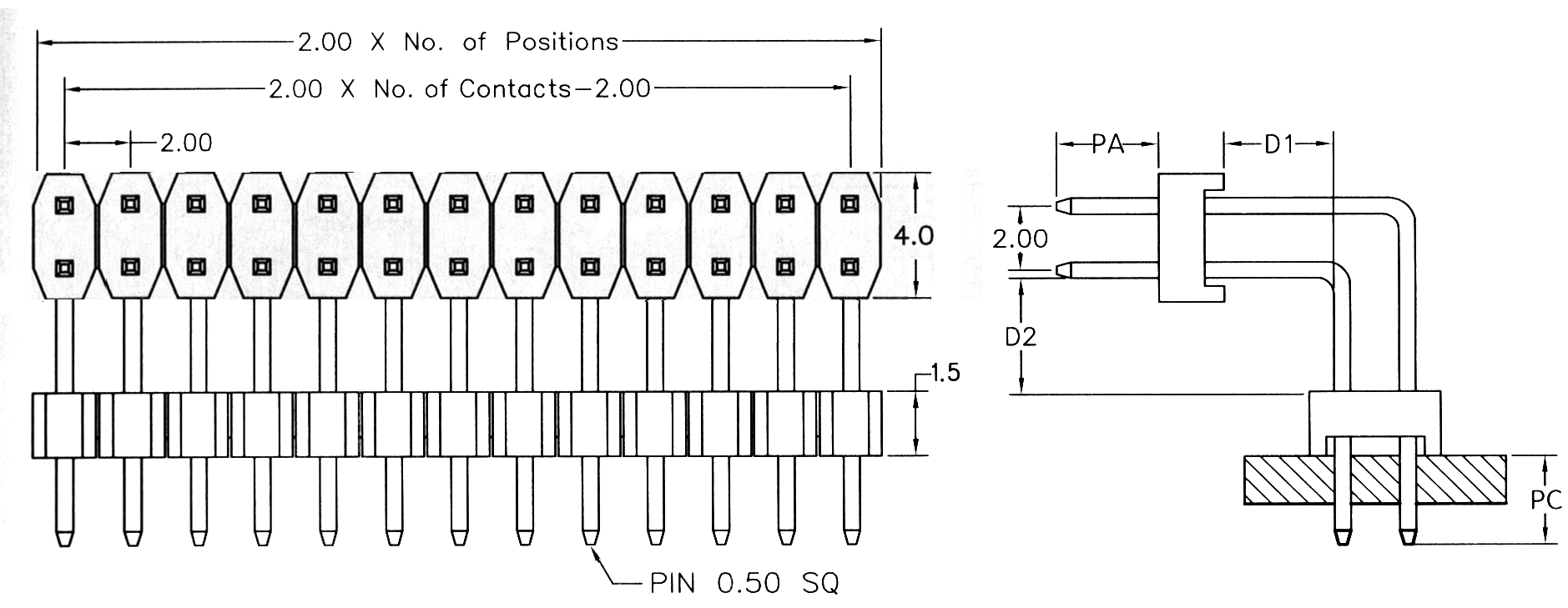

Drawing

BL1315	-	2	2	XX	R	G	-	28505040
1		2	3	4	5	6		7

1) Series:
     BL1315
2) Number of insulators:
     2: two
3) Number of rows:
     2: two
4) number of pins (2...80):
     XX
5) Type:
     S: straight
     R: angle
     M: vertical for surface mounting (SMD)
     Z: horizontal for surface mounting (SMD)
6) Contact coverage:
     G: gold plating
     T: tin plating
7) Dimensions PC, D, PB, PA in tenths of mm:
     28505040: (standard) PC=2,8 mm, D1=5,0 mm, D2=5,0 mm, PA=4,0 mm

Double-row pin plugs with double insulator corner of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
96212	BL1315-2202R2-1.5	2
96213	BL1315-2204R2-1.5	4
96214	BL1315-2206R2-1.5	6
96215	BL1315-2208R2-1.5	8
96216	BL1315-2210R2-1.5	10
96217	BL1315-2212R2-1.5	12
96218	BL1315-2214R2-1.5	14
96219	BL1315-2216R2-1.5	16
96270	BL1315-2218R2-1.5	18
96271	BL1315-2220R2-1.5	20
96272	BL1315-2222R2-1.5	22
96273	BL1315-2224R2-1.5	24
96274	BL1315-2226R2-1.5	26
96275	BL1315-2228R2-1.5	28
96276	BL1315-2230R2-1.5	30
96277	BL1315-2232R2-1.5	32
96278	BL1315-2234R2-1.5	34
96279	BL1315-2236R2-1.5	36
96280	BL1315-2238R2-1.5	38
96281	BL1315-2240R2-1.5	40

ID	Part.No.	number of contacts
96282	BL1315-2242R2-1.5	42
96283	BL1315-2244R2-1.5	44
96284	BL1315-2246R2-1.5	46
96285	BL1315-2248R2-1.5	48
96286	BL1315-2250R2-1.5	50
96287	BL1315-2252R2-1.5	52
96288	BL1315-2254R2-1.5	54
96289	BL1315-2256R2-1.5	56
96290	BL1315-2258R2-1.5	58
96291	BL1315-2260R2-1.5	60
96292	BL1315-2262R2-1.5	62
96293	BL1315-2264R2-1.5	64
96294	BL1315-2266R2-1.5	66
96295	BL1315-2268R2-1.5	68
96296	BL1315-2270R2-1.5	70
96297	BL1315-2272R2-1.5	72
96298	BL1315-2274R2-1.5	74
96299	BL1315-2276R2-1.5	76
96300	BL1315-2278R2-1.5	78
96301	BL1315-2280R2-1.5	80
