| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
BL1320-22xxR1-2.0 series |
double-row pin plugs with double insulator corner, pitch 2,0x2,0 mm
|

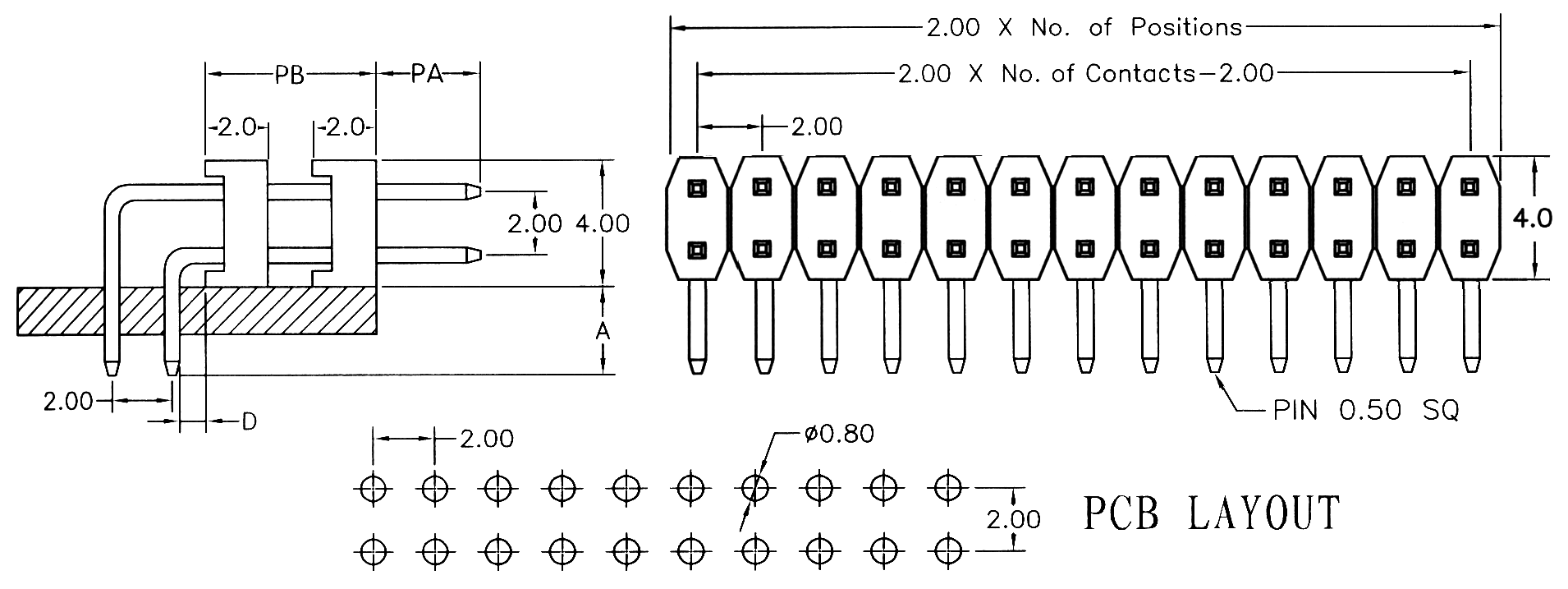

Drawing
|
| BL1320 |
- |
2 |
2 |
XX |
R |
G |
- |
2807515040 |
| 1 |
|
2 |
3 |
4 |
5 |
6 |
|
7 |
|
|
1) Series:
BL1320
2) Number of insulators:
2: two
3) Number of rows:
2: two
4) number of pins (2...80):
XX
5) Type:
S: straight
R: angle
M: vertical for surface mounting (SMD)
Z: horizontal for surface mounting (SMD)
6) Contact coverage:
G: gold plating
T: tin plating
7) Dimensions PC, D, PB, PA in tenths of mm:
2807515040: (standard) PC=2,8 mm, D=0,75 mm, PB=15,0 mm, PA=4,0 mm
|
|
Double-row pin plugs with double insulator corner of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 96172 |
BL1320-2201R1-2.0 |
1 |
| 96173 |
BL1320-2202R1-2.0 |
2 |
| 96174 |
BL1320-2203R1-2.0 |
3 |
| 96175 |
BL1320-2204R1-2.0 |
4 |
| 96176 |
BL1320-2205R1-2.0 |
5 |
| 96177 |
BL1320-2206R1-2.0 |
6 |
| 96178 |
BL1320-2207R1-2.0 |
7 |
| 96179 |
BL1320-2208R1-2.0 |
8 |
| 96180 |
BL1320-2209R1-2.0 |
9 |
| 96181 |
BL1320-2210R1-2.0 |
10 |
| 96182 |
BL1320-2211R1-2.0 |
11 |
| 96183 |
BL1320-2212R1-2.0 |
12 |
| 96184 |
BL1320-2213R1-2.0 |
13 |
| 96185 |
BL1320-2214R1-2.0 |
14 |
| 96186 |
BL1320-2215R1-2.0 |
15 |
| 96187 |
BL1320-2216R1-2.0 |
16 |
| 96188 |
BL1320-2217R1-2.0 |
17 |
| 96189 |
BL1320-2218R1-2.0 |
18 |
| 96190 |
BL1320-2219R1-2.0 |
19 |
| 96191 |
BL1320-2220R1-2.0 |
20 |
|
|
| 96192 |
BL1320-2221R1-2.0 |
21 |
| 96193 |
BL1320-2222R1-2.0 |
22 |
| 96194 |
BL1320-2223R1-2.0 |
23 |
| 96195 |
BL1320-2224R1-2.0 |
24 |
| 96196 |
BL1320-2225R1-2.0 |
25 |
| 96197 |
BL1320-2226R1-2.0 |
26 |
| 96198 |
BL1320-2227R1-2.0 |
27 |
| 96199 |
BL1320-2228R1-2.0 |
28 |
| 96200 |
BL1320-2229R1-2.0 |
29 |
| 96201 |
BL1320-2230R1-2.0 |
30 |
| 96202 |
BL1320-2231R1-2.0 |
31 |
| 96203 |
BL1320-2232R1-2.0 |
32 |
| 96204 |
BL1320-2233R1-2.0 |
33 |
| 96205 |
BL1320-2234R1-2.0 |
34 |
| 96206 |
BL1320-2235R1-2.0 |
35 |
| 96207 |
BL1320-2236R1-2.0 |
36 |
| 96208 |
BL1320-2237R1-2.0 |
37 |
| 96209 |
BL1320-2238R1-2.0 |
38 |
| 96210 |
BL1320-2239R1-2.0 |
39 |
| 96211 |
BL1320-2240R1-2.0 |
40 |
|
PCB layout
|
|
|
