| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0 mm |
BL1320-21xxR1-2.0 series |
single-row pin plugs with double insulator corner, pitch 2,0 mm
|

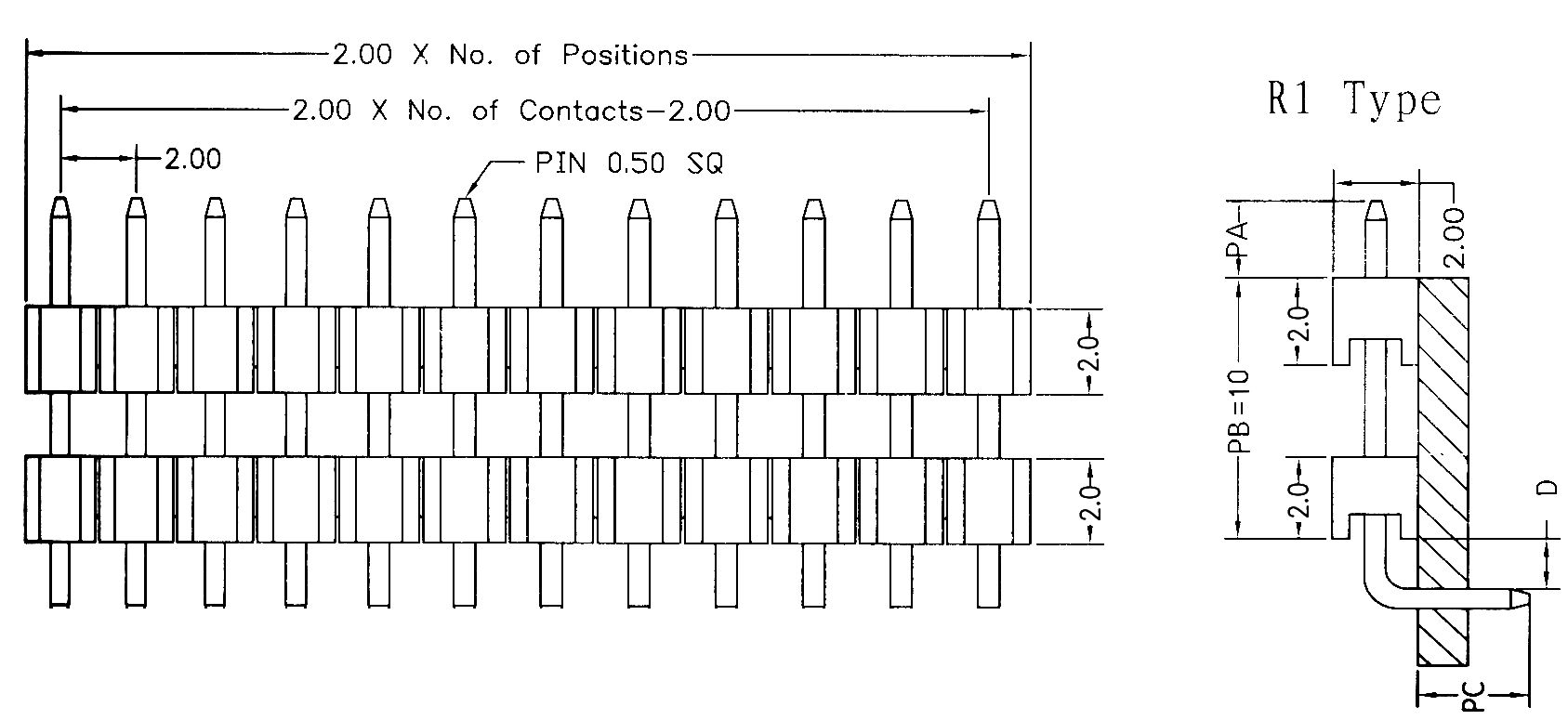

Drawing
|
| BL1320 |
- |
2 |
1 |
XX |
R |
G |
- |
2807540 |
| 1 |
|
2 |
3 |
4 |
5 |
6 |
|
7 |
|
|
1) Series:
BL1320
2) Number of insulators:
2: two
3) Number of rows:
1: one
4) number of pins (1...40):
XX
5) Type:
S: straight
R: angle
M: vertical for surface mounting (SMD)
Z: horizontal for surface mounting (SMD)
6) Contact coverage:
G: gold plating
T: tin plating
7) Dimensions PC, D, PA in tenths of mm:
2807540: (standard) PC=2,8 mm, D=0,75 mm, PA=4,0 mm
|
|
Single-row pin plugs with double insulator corner of this series are made in the form of a comb 1x40 pins. Then they can be cut on a special device on factory at the request of the customer for any number of contacts: 1, 2, 3... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 95460 |
BL1320-2101R1-2.0 |
1 |
| 95461 |
BL1320-2102R1-2.0 |
2 |
| 95462 |
BL1320-2103R1-2.0 |
3 |
| 95463 |
BL1320-2104R1-2.0 |
4 |
| 95464 |
BL1320-2105R1-2.0 |
5 |
| 95465 |
BL1320-2106R1-2.0 |
6 |
| 95466 |
BL1320-2107R1-2.0 |
7 |
| 95467 |
BL1320-2108R1-2.0 |
8 |
| 95468 |
BL1320-2109R1-2.0 |
9 |
| 95469 |
BL1320-2110R1-2.0 |
10 |
| 95520 |
BL1320-2111R1-2.0 |
11 |
| 95521 |
BL1320-2112R1-2.0 |
12 |
| 95522 |
BL1320-2113R1-2.0 |
13 |
| 95523 |
BL1320-2114R1-2.0 |
14 |
| 95524 |
BL1320-2115R1-2.0 |
15 |
| 95525 |
BL1320-2116R1-2.0 |
16 |
| 95526 |
BL1320-2117R1-2.0 |
17 |
| 95527 |
BL1320-2118R1-2.0 |
18 |
| 95528 |
BL1320-2119R1-2.0 |
19 |
| 95529 |
BL1320-2120R1-2.0 |
20 |
|
|
| 95530 |
BL1320-2121R1-2.0 |
21 |
| 95531 |
BL1320-2122R1-2.0 |
22 |
| 95532 |
BL1320-2123R1-2.0 |
23 |
| 95533 |
BL1320-2124R1-2.0 |
24 |
| 95534 |
BL1320-2125R1-2.0 |
25 |
| 95535 |
BL1320-2126R1-2.0 |
26 |
| 95536 |
BL1320-2127R1-2.0 |
27 |
| 95537 |
BL1320-2128R1-2.0 |
28 |
| 95538 |
BL1320-2129R1-2.0 |
29 |
| 95539 |
BL1320-2130R1-2.0 |
30 |
| 95540 |
BL1320-2131R1-2.0 |
31 |
| 95541 |
BL1320-2132R1-2.0 |
32 |
| 95542 |
BL1320-2133R1-2.0 |
33 |
| 95543 |
BL1320-2134R1-2.0 |
34 |
| 95544 |
BL1320-2135R1-2.0 |
35 |
| 95545 |
BL1320-2136R1-2.0 |
36 |
| 95546 |
BL1320-2137R1-2.0 |
37 |
| 95547 |
BL1320-2138R1-2.0 |
38 |
| 95548 |
BL1320-2139R1-2.0 |
39 |
| 95549 |
BL1320-2140R1-2.0 |
40 |
|
PCB layout
|
|
|
