| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
2208S-XXG-H15-125 series |
plugs pin header straight double row open on the Board for mounting holes, pitch 2,0x2,0 mm
|

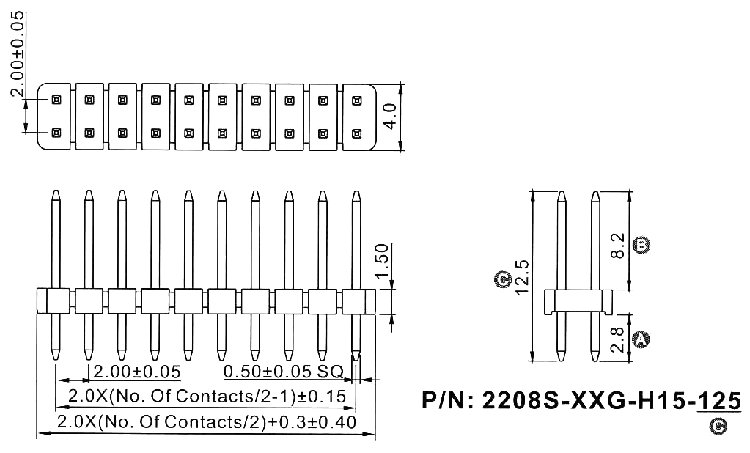

Drawing
|
| 2208 |
S |
- |
02 |
G |
- |
H15 |
- |
125 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
6 |
|
|
1) Series:
2208
2) Insulator:
S: straight
3) number of pins (2...80):
02: 2 pin (padded with zeros in front if less than 10 pins, i.e.: 02, ... 08)
04: 4 pins
xx: ...
80: 80 pins
4) Contact coverage:
G: gold plating
CG: selective gold plating
T: tin plating
5) Insulator height in tenths of mm = 1,5 mm:
H15
6) size C in tenths of mm:
125
|
|
Plugs pin header straight double row open on the Board for mounting holes of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
