2208SM-XXG-XXXX-CG series

plugs pin open straight two-row with guides on the Board for surface (SMD) mounting with capture, pitch 2,0x2,0 mm

2208SM-XXG-XXXX-CG series, plugs pin open straight two-row with guides on the Board for surface (SMD) mounting with capture, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

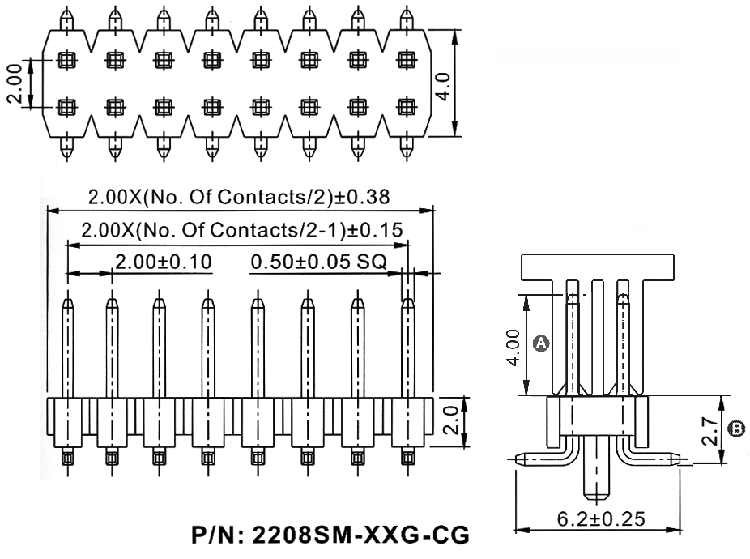

Drawing

2208	SM	-	04	G	-	XXXX	-	CG
1	2		3	4		5		6

1) Series:
     2208
2) Insulator:
     SM: for surface mounting (SMD)
3) number of pins (4...80):
     04: 4 pin (padded with zeros in front if less than 10 pins, i.e.: 04, ... 08)
     06: 6 pins
     xx: ...
     80: 80 pins
4) Contact coverage:
     G: gold plating
     T: tin plating
5) Dimensions A & B in tenths of mm (standard: A=40 mm; B=27 mm):
     XXXX
6) guides to PCB & cover for automatic installation:
     CG

Plugs pin open straight two-row with guides on the Board for surface (SMD) mounting with capture of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
81296	2208SM-04G-4027-CG	4
81297	2208SM-06G-4027-CG	6
81298	2208SM-08G-4027-CG	8
81299	2208SM-10G-4027-CG	10
81300	2208SM-12G-4027-CG	12
81301	2208SM-14G-4027-CG	14
81302	2208SM-16G-4027-CG	16
81303	2208SM-18G-4027-CG	18
81304	2208SM-20G-4027-CG	20
81305	2208SM-22G-4027-CG	22
81306	2208SM-24G-4027-CG	24
81307	2208SM-26G-4027-CG	26
81308	2208SM-28G-4027-CG	28
81309	2208SM-30G-4027-CG	30
81310	2208SM-32G-4027-CG	32
81311	2208SM-34G-4027-CG	34
81312	2208SM-36G-4027-CG	36
81313	2208SM-38G-4027-CG	38
81314	2208SM-40G-4027-CG	40
81315	2208SM-42G-4027-CG	42

ID	Part.No.	number of contacts
81316	2208SM-44G-4027-CG	44
81317	2208SM-46G-4027-CG	46
81318	2208SM-48G-4027-CG	48
81319	2208SM-50G-4027-CG	50
81320	2208SM-52G-4027-CG	52
81321	2208SM-54G-4027-CG	54
81322	2208SM-56G-4027-CG	56
81323	2208SM-58G-4027-CG	58
81324	2208SM-60G-4027-CG	60
81325	2208SM-62G-4027-CG	62
81326	2208SM-64G-4027-CG	64
81327	2208SM-66G-4027-CG	66
81328	2208SM-68G-4027-CG	68
81329	2208SM-70G-4027-CG	70
81330	2208SM-72G-4027-CG	72
81331	2208SM-74G-4027-CG	74
81332	2208SM-76G-4027-CG	76
81333	2208SM-78G-4027-CG	78
81334	2208SM-80G-4027-CG	80
