2209SM-XXG-B2 series

straight single row sockets for surface mounting (SMD) , pitch 2,0 mm

2209SM-XXG-B2 series, straight single row sockets for surface mounting (SMD) , pitch 2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0 mm

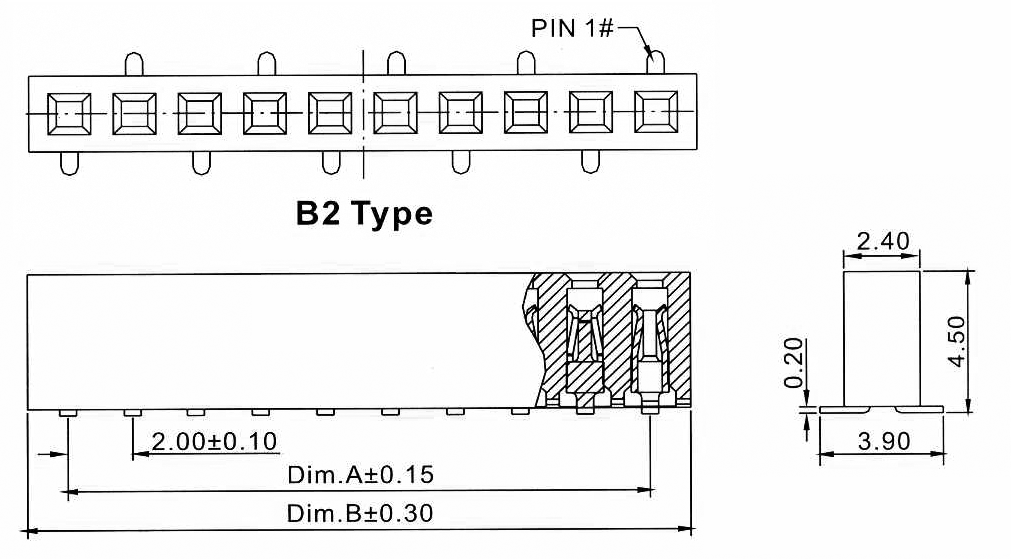

Drawing

2209	SM	-	02	G	-	B1
1	2		3	4		5

1) Series:
     2209
2) Insulator:
     SM: for surface mounting (SMD)
3) number of pins (2...40):
     02: 2 pin (padded with zeros in front if less than 10 pins, i.e.: 02, 03...09)
     03: 3 pins
     xx: ...
     40: 40 pins
4) Contact coverage:
     G: gold plating
5) mirror the location of the pins:
     B1
     B2

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

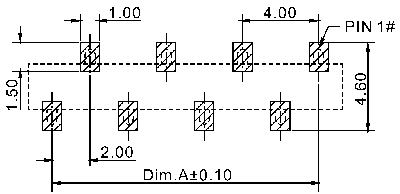

PCB layout

ID	Part.No.	number of contacts
81139	2209SM-02G-B2	2
81140	2209SM-03G-B2	3
81141	2209SM-04G-B2	4
81142	2209SM-05G-B2	5
81143	2209SM-06G-B2	6
81144	2209SM-07G-B2	7
81145	2209SM-08G-B2	8
81146	2209SM-09G-B2	9
81147	2209SM-10G-B2	10
81148	2209SM-11G-B2	11
81149	2209SM-12G-B2	12
81150	2209SM-13G-B2	13
81151	2209SM-14G-B2	14
81152	2209SM-15G-B2	15
81153	2209SM-16G-B2	16
81154	2209SM-17G-B2	17
81155	2209SM-18G-B2	18
81156	2209SM-19G-B2	19
81157	2209SM-20G-B2	20
81158	2209SM-21G-B2	21

ID	Part.No.	number of contacts
81159	2209SM-22G-B2	22
81160	2209SM-23G-B2	23
81161	2209SM-24G-B2	24
81162	2209SM-25G-B2	25
81163	2209SM-26G-B2	26
81164	2209SM-27G-B2	27
81165	2209SM-28G-B2	28
81166	2209SM-29G-B2	29
81167	2209SM-30G-B2	30
81168	2209SM-31G-B2	31
81169	2209SM-32G-B2	32
81170	2209SM-33G-B2	33
81171	2209SM-34G-B2	34
81172	2209SM-35G-B2	35
81173	2209SM-36G-B2	36
81174	2209SM-37G-B2	37
81175	2209SM-38G-B2	38
81176	2209SM-39G-B2	39
81177	2209SM-40G-B2	40
