| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0 mm |
2209S-XXG-635 series |
socket single row straight pin header on the Board for mounting holes, pitch 2,0 mm
|

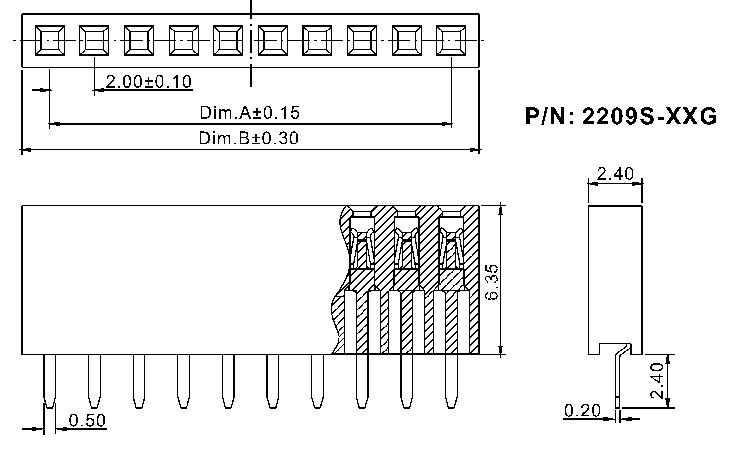

Drawing
|
| 2209 |
S |
- |
02 |
G |
- |
635 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) Series:
2209
2) Type:
S: straight
3) number of pins (2...40):
02: 2 pin (padded with zeros in front if less than 10 pins, i.e.: 02, 03...09)
03: 3 pins
xx: ...
40: 40 pins
4) Contact coverage:
G: gold plating
5) Insulator height in hundredths of mm:
635
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 72423 |
2209S-02G-635 |
2 |
| 72424 |
2209S-03G-635 |
3 |
| 72425 |
2209S-04G-635 |
4 |
| 72426 |
2209S-05G-635 |
5 |
| 72427 |
2209S-06G-635 |
6 |
| 72428 |
2209S-07G-635 |
7 |
| 72429 |
2209S-08G-635 |
8 |
| 72430 |
2209S-09G-635 |
9 |
| 72431 |
2209S-10G-635 |
10 |
| 72432 |
2209S-11G-635 |
11 |
| 72433 |
2209S-12G-635 |
12 |
| 72434 |
2209S-13G-635 |
13 |
| 72435 |
2209S-14G-635 |
14 |
| 72436 |
2209S-15G-635 |
15 |
| 72437 |
2209S-16G-635 |
16 |
| 72438 |
2209S-17G-635 |
17 |
| 72439 |
2209S-18G-635 |
18 |
| 72440 |
2209S-19G-635 |
19 |
| 72441 |
2209S-20G-635 |
20 |
| 72442 |
2209S-21G-635 |
21 |
|
|
| 72443 |
2209S-22G-635 |
22 |
| 72444 |
2209S-23G-635 |
23 |
| 72445 |
2209S-24G-635 |
24 |
| 72446 |
2209S-25G-635 |
25 |
| 72447 |
2209S-26G-635 |
26 |
| 72448 |
2209S-27G-635 |
27 |
| 72449 |
2209S-28G-635 |
28 |
| 72450 |
2209S-29G-635 |
29 |
| 72451 |
2209S-30G-635 |
30 |
| 72452 |
2209S-31G-635 |
31 |
| 72453 |
2209S-32G-635 |
32 |
| 72454 |
2209S-33G-635 |
33 |
| 72455 |
2209S-34G-635 |
34 |
| 72456 |
2209S-35G-635 |
35 |
| 72457 |
2209S-36G-635 |
36 |
| 72458 |
2209S-37G-635 |
37 |
| 72459 |
2209S-38G-635 |
38 |
| 72460 |
2209S-39G-635 |
39 |
| 72461 |
2209S-40G-635 |
40 |
|
PCB layout
|
|
|
