| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
2207SM-XXSG-45-PG series |
straight double row socket with a guide to the cost for surface (SMD) mounting, pitch 2,0x2,0 mm
|

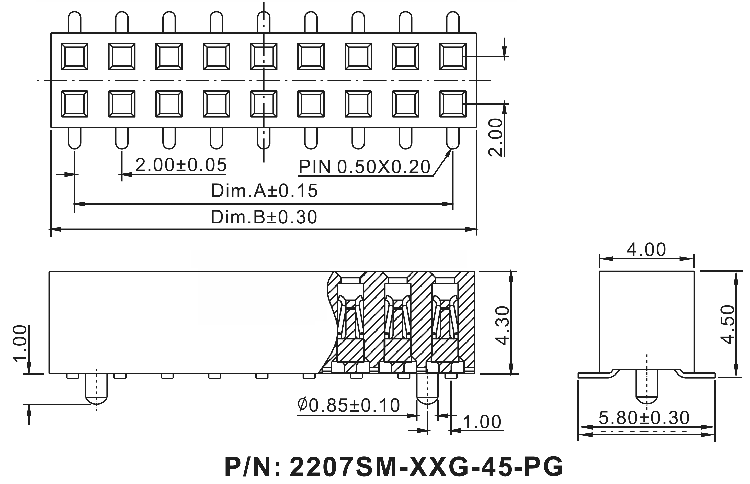

Drawing
|
| 2207 |
SM |
- |
04 |
SG |
- |
45 |
- |
PG |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
6 |
|
|
1) Series:
2207
2) Insulator:
SM: for surface mounting (SMD)
3) number of pins (4...80):
04: 4 pin (padded with zeros in front if less than 10 pins, i.e.: 04, ... 08)
06: 6 pins
xx: ...
80: 80 pins
4) Contact coverage:
SG: selective gold plating
5) Height in tenths of mm = 4,5 mm:
45
6) guides to PCB:
PG
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 64740 |
2207SM-04SG-45-PG (2x2) |
4 |
| 64741 |
2207SM-06SG-45-PG (2x3) |
6 |
| 64742 |
2207SM-08SG-45-PG (2x4) |
8 |
| 64743 |
2207SM-10SG-45-PG (2x5) |
10 |
| 64744 |
2207SM-12SG-45-PG (2x6) |
12 |
| 64745 |
2207SM-14SG-45-PG (2x7) |
14 |
| 64746 |
2207SM-16SG-45-PG (2x8) |
16 |
| 64747 |
2207SM-18SG-45-PG (2x9) |
18 |
| 64748 |
2207SM-20SG-45-PG (2x10) |
20 |
| 64749 |
2207SM-22SG-45-PG (2x11) |
22 |
| 64750 |
2207SM-24SG-45-PG (2x12) |
24 |
| 64751 |
2207SM-26SG-45-PG (2x13) |
26 |
| 64752 |
2207SM-28SG-45-PG (2x14) |
28 |
| 64753 |
2207SM-30SG-45-PG (2x15) |
30 |
| 64754 |
2207SM-32SG-45-PG (2x16) |
32 |
| 64755 |
2207SM-34SG-45-PG (2x17) |
34 |
| 64756 |
2207SM-36SG-45-PG (2x18) |
36 |
| 64757 |
2207SM-38SG-45-PG (2x19) |
38 |
| 64758 |
2207SM-40SG-45-PG (2x20) |
40 |
| 64759 |
2207SM-42SG-45-PG (2x21) |
42 |
|
|
| 64760 |
2207SM-44SG-45-PG (2x22) |
44 |
| 64761 |
2207SM-46SG-45-PG (2x23) |
46 |
| 64762 |
2207SM-48SG-45-PG (2x24) |
48 |
| 64763 |
2207SM-50SG-45-PG (2x25) |
50 |
| 64764 |
2207SM-52SG-45-PG (2x26) |
52 |
| 64765 |
2207SM-54SG-45-PG (2x27) |
54 |
| 64766 |
2207SM-56SG-45-PG (2x28) |
56 |
| 64767 |
2207SM-58SG-45-PG (2x29) |
58 |
| 64768 |
2207SM-60SG-45-PG (2x30) |
60 |
| 64769 |
2207SM-62SG-45-PG (2x31) |
62 |
| 64770 |
2207SM-64SG-45-PG (2x32) |
64 |
| 64771 |
2207SM-66SG-45-PG (2x33) |
66 |
| 64772 |
2207SM-68SG-45-PG (2x34) |
68 |
| 64773 |
2207SM-70SG-45-PG (2x35) |
70 |
| 64774 |
2207SM-72SG-45-PG (2x36) |
72 |
| 64775 |
2207SM-74SG-45-PG (2x37) |
74 |
| 64776 |
2207SM-76SG-45-PG (2x38) |
76 |
| 64777 |
2207SM-78SG-45-PG (2x39) |
78 |
| 64778 |
2207SM-80SG-45-PG (2x40) |
80 |
|
PCB layout
|
|
|
