| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
1999S-XXXG-635 series |
four-row sockets straight to the Board for mounting holes, pitch 2,0x2,0 mm
|

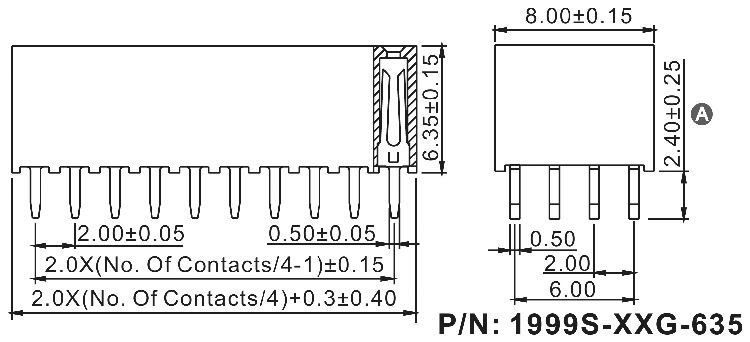

Drawing
|
| 1999 |
S |
- |
008 |
G |
- |
635 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) Series:
1999
2) Insulator:
S: straight
3) number of pins (8...160):
008: 8 pins
012: 12 pins
xxx: ...
160: 160 pins
4) Contact coverage:
G: gold plating
5) Insulator height in hundredths of mm:
635: 6,35 mm
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
