1999PDI-XXXG-H15-2660 series

plugs pin open straight with double insulator four-row on Board for mounting in holes, pitch 2,0x2,0 mm

1999PDI-XXXG-H15-2660 series, plugs pin open straight with double insulator four-row on Board for mounting in holes, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

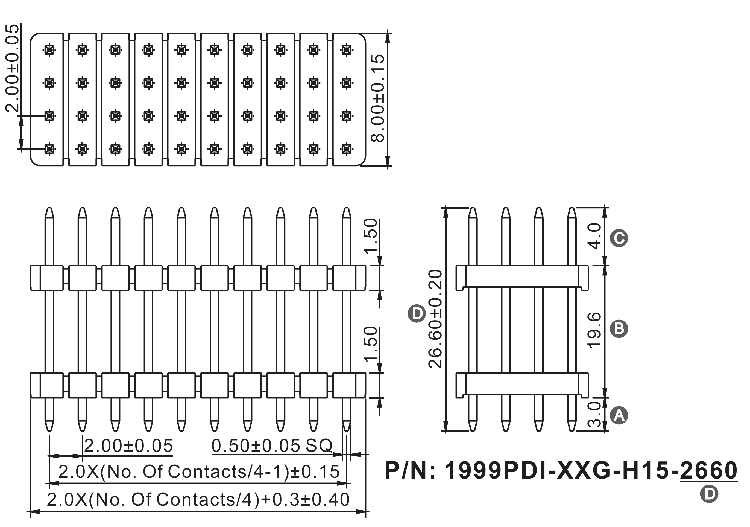

Drawing

1999	PDI	-	008	G	-	H15	-	2660
1	2		3	4		5		6

1) Series:
     1999
2) Insulator:
     PDI: straight with double insulator
3) number of pins (8...160):
     008: 8 pins
     012: 12 pins
     xxx: ...
     160: 160 pins
4) Contact coverage:
     G: gold plating
     T: tin plating
5) Insulator height in tenths of mm:
     H15: 1,5 mm
6) size D in hundredths of mm (standard 2660):
     2660: 26,6 mm

Plugs pin open straight with double insulator four-row on Board for mounting in holes of this series are made in the form of a comb 4x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 4, 8, 12... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
70063	1999PDI-008G-H15-2660	8
70064	1999PDI-012G-H15-2660	12
70065	1999PDI-016G-H15-2660	16
70066	1999PDI-020G-H15-2660	20
70067	1999PDI-024G-H15-2660	24
70068	1999PDI-028G-H15-2660	28
70069	1999PDI-032G-H15-2660	32
70070	1999PDI-036G-H15-2660	36
70071	1999PDI-040G-H15-2660	40
70072	1999PDI-044G-H15-2660	44
70073	1999PDI-048G-H15-2660	48
70074	1999PDI-052G-H15-2660	52
70075	1999PDI-056G-H15-2660	56
70076	1999PDI-060G-H15-2660	60
70077	1999PDI-064G-H15-2660	64
70078	1999PDI-068G-H15-2660	68
70079	1999PDI-072G-H15-2660	72
70080	1999PDI-076G-H15-2660	76
70081	1999PDI-080G-H15-2660	80
70082	1999PDI-084G-H15-2660	84

ID	Part.No.	number of contacts
70083	1999PDI-088G-H15-2660	88
70084	1999PDI-092G-H15-2660	92
70085	1999PDI-096G-H15-2660	96
70086	1999PDI-100G-H15-2660	100
70087	1999PDI-104G-H15-2660	104
70088	1999PDI-108G-H15-2660	108
70089	1999PDI-112G-H15-2660	112
70090	1999PDI-116G-H15-2660	116
70091	1999PDI-120G-H15-2660	120
70092	1999PDI-124G-H15-2660	124
70093	1999PDI-128G-H15-2660	128
70094	1999PDI-132G-H15-2660	132
70095	1999PDI-136G-H15-2660	136
70096	1999PDI-140G-H15-2660	140
70097	1999PDI-144G-H15-2660	144
70098	1999PDI-148G-H15-2660	148
70099	1999PDI-152G-H15-2660	152
70100	1999PDI-156G-H15-2660	156
70101	1999PDI-160G-H15-2660	160

PCB layout
