| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
1999SDI-XXXG-935 series |
four-row sockets straight to the Board for mounting holes, pitch 2,0x2,0 mm
|

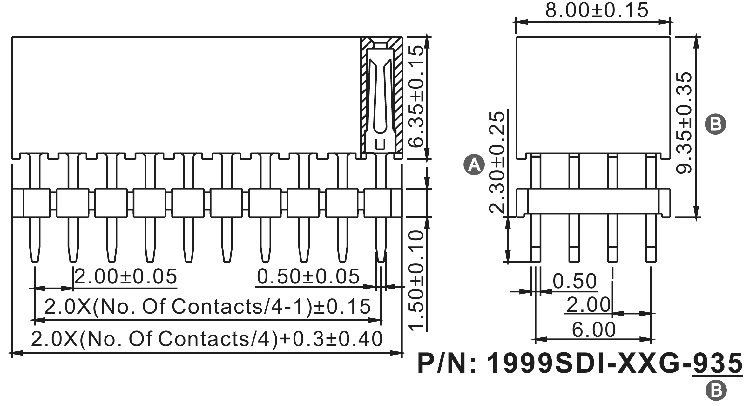

Drawing
|
| 1999 |
SDI |
- |
008 |
G |
- |
935 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) Series:
1999
2) Insulator:
SDI: straight with double insulator
3) number of pins (8...160):
008: 8 pins
012: 12 pins
xxx: ...
160: 160 pins
4) Contact coverage:
G: gold plating
5) Insulator height in hundredths of mm:
935: 9,35 mm
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 69867 |
1999SDI-008G-935 |
8 |
| 65915 |
1999SDI-012G-935 |
12 |
| 65916 |
1999SDI-016G-935 |
16 |
| 65917 |
1999SDI-020G-935 |
20 |
| 65918 |
1999SDI-024G-935 |
24 |
| 65919 |
1999SDI-028G-935 |
28 |
| 65920 |
1999SDI-032G-935 |
32 |
| 65921 |
1999SDI-036G-935 |
36 |
| 65922 |
1999SDI-040G-935 |
40 |
| 65923 |
1999SDI-044G-935 |
44 |
| 65924 |
1999SDI-048G-935 |
48 |
| 65925 |
1999SDI-052G-935 |
52 |
| 65926 |
1999SDI-056G-935 |
56 |
| 65927 |
1999SDI-060G-935 |
60 |
| 65928 |
1999SDI-064G-935 |
64 |
| 65929 |
1999SDI-068G-935 |
68 |
| 65930 |
1999SDI-072G-935 |
72 |
| 65931 |
1999SDI-076G-935 |
76 |
| 65932 |
1999SDI-080G-935 |
80 |
| 65933 |
1999SDI-084G-935 |
84 |
|
|
| 65934 |
1999SDI-088G-935 |
88 |
| 65935 |
1999SDI-092G-935 |
92 |
| 65936 |
1999SDI-096G-935 |
96 |
| 65937 |
1999SDI-100G-935 |
100 |
| 65938 |
1999SDI-104G-935 |
104 |
| 65939 |
1999SDI-108G-935 |
108 |
| 65940 |
1999SDI-112G-935 |
112 |
| 65941 |
1999SDI-116G-935 |
116 |
| 65942 |
1999SDI-120G-935 |
120 |
| 69857 |
1999SDI-124G-935 |
124 |
| 69858 |
1999SDI-128G-935 |
128 |
| 69859 |
1999SDI-132G-935 |
132 |
| 69860 |
1999SDI-136G-935 |
136 |
| 69861 |
1999SDI-140G-935 |
140 |
| 69862 |
1999SDI-144G-935 |
144 |
| 69863 |
1999SDI-148G-935 |
148 |
| 69864 |
1999SDI-152G-935 |
152 |
| 69865 |
1999SDI-156G-935 |
156 |
| 69866 |
1999SDI-160G-935 |
160 |
|
PCB layout
|
|
|
