| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
1999P-XXXG-H15-125 series |
plugs pin open straight four-row on Board for mounting in holes, pitch 2,0x2,0 mm
|

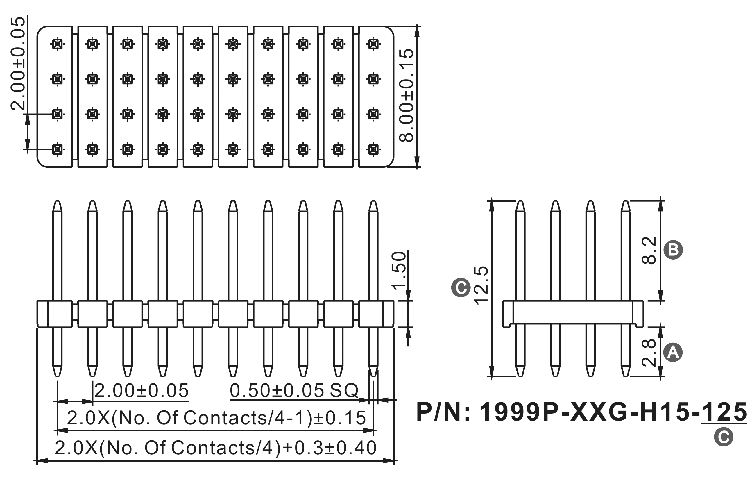

Drawing
|
| 1999 |
P |
- |
008 |
G |
- |
H15 |
- |
125 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
6 |
|
|
1) Series:
1999
2) Insulator:
P: straight
3) number of pins (8...160):
008: 8 pins
012: 12 pins
xxx: ...
160: 160 pins
4) Contact coverage:
G: gold plating
T: tin plating
5) Insulator height in tenths of mm:
H15: 1,5 mm
6) size C in tenths of mm:
125: 12,5 mm
|
|
Plugs pin open straight four-row on Board for mounting in holes of this series are made in the form of a comb 4x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 4, 8, 12... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 69807 |
1999P-008G-H15-125 |
8 |
| 65887 |
1999P-012G-H15-125 |
12 |
| 65888 |
1999P-016G-H15-125 |
16 |
| 73159 |
1999P-016G-H15-87 |
16 |
| 65889 |
1999P-020G-H15-125 |
20 |
| 65890 |
1999P-024G-H15-125 |
24 |
| 65891 |
1999P-028G-H15-125 |
28 |
| 65892 |
1999P-032G-H15-125 |
32 |
| 65893 |
1999P-036G-H15-125 |
36 |
| 65894 |
1999P-040G-H15-125 |
40 |
| 65895 |
1999P-044G-H15-125 |
44 |
| 65896 |
1999P-048G-H15-125 |
48 |
| 65897 |
1999P-052G-H15-125 |
52 |
| 65898 |
1999P-056G-H15-125 |
56 |
| 65899 |
1999P-060G-H15-125 |
60 |
| 65900 |
1999P-064G-H15-125 |
64 |
| 65901 |
1999P-068G-H15-125 |
68 |
| 65902 |
1999P-072G-H15-125 |
72 |
| 65903 |
1999P-076G-H15-125 |
76 |
| 65904 |
1999P-080G-H15-125 |
80 |
|
|
| 65905 |
1999P-084G-H15-125 |
84 |
| 65906 |
1999P-088G-H15-125 |
88 |
| 65907 |
1999P-092G-H15-125 |
92 |
| 65908 |
1999P-096G-H15-125 |
96 |
| 65909 |
1999P-100G-H15-125 |
100 |
| 65910 |
1999P-104G-H15-125 |
104 |
| 65911 |
1999P-108G-H15-125 |
108 |
| 65912 |
1999P-112G-H15-125 |
112 |
| 65913 |
1999P-116G-H15-125 |
116 |
| 65914 |
1999P-120G-H15-125 |
120 |
| 69808 |
1999P-124G-H15-125 |
124 |
| 69809 |
1999P-128G-H15-125 |
128 |
| 69810 |
1999P-132G-H15-125 |
132 |
| 69811 |
1999P-136G-H15-125 |
136 |
| 69812 |
1999P-140G-H15-125 |
140 |
| 69813 |
1999P-144G-H15-125 |
144 |
| 69814 |
1999P-148G-H15-125 |
148 |
| 69815 |
1999P-152G-H15-125 |
152 |
| 69816 |
1999P-156G-H15-125 |
156 |
| 69817 |
1999P-160G-H15-125 |
160 |
|
PCB layout
|
|
|
